1.Material: A3
2.Color: Bright chrome plated

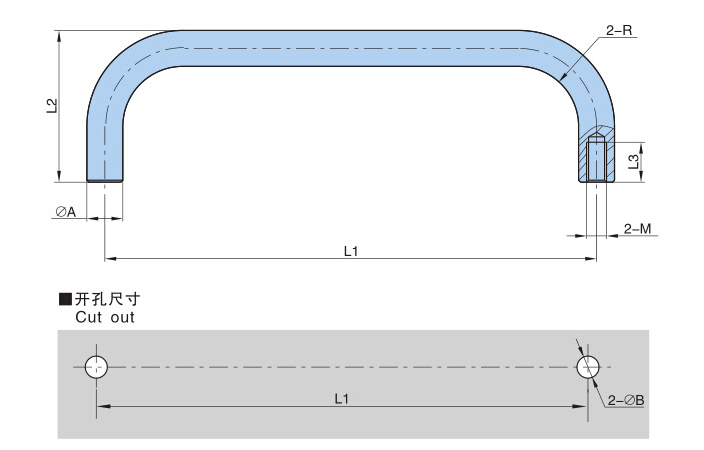

| 型号 Product no. | 基本尺寸 Dimensions | 产品单重(g)Weight | 装箱数Lot | ||||||
| L1 | L2 | L3 | M | R | ∅A | ∅B | |||
| KL019-1 | 200 | 38 | 10 | M5 | R15 | ∅9 | ∅5.5 | 120 | 200 |
| KL019-1A | 150 | 55 | 10 | M5 | R15 | ∅9 | ∅5.5 | 110 | 200 |
| KL019-2 | 100 | 38 | 10 | M5 | R5 | ∅9 | ∅5.5 | 72 | 200 |
| KL019-2(不锈钢) | 100 | 38 | 10 | M5 | R6 | ∅9 | ∅5.5 | 75 | 200 |
| KL019-3 | 76 | 30 | 12 | M4 | R6 | ∅8 | ∅4.5 | 19 | 400 |
| KL019-4 | 90 | 38 | 10 | M5 | R15 | ∅9 | ∅5.5 | 52 | 400 |
